Floodlight Brackets

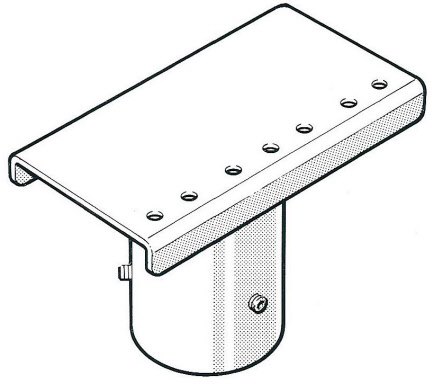

Post Top Single Floodlight Bracket

  • Pre-drilled for a variety of floodlights.
  • Unit will turn 360 degrees to give light where required.
  • Manufactured from Mild Steel.
  • Galvanised to BS 729.
Post Top Single Floodlight Bracket
Part NumberCol Dia
SF/246576
SF/247089
SF/2475101
SF/2480114
SF/2485

140

SF/2490168
Post Top Single Floodlight Bracket

Post Top Single Floodlight Bracket

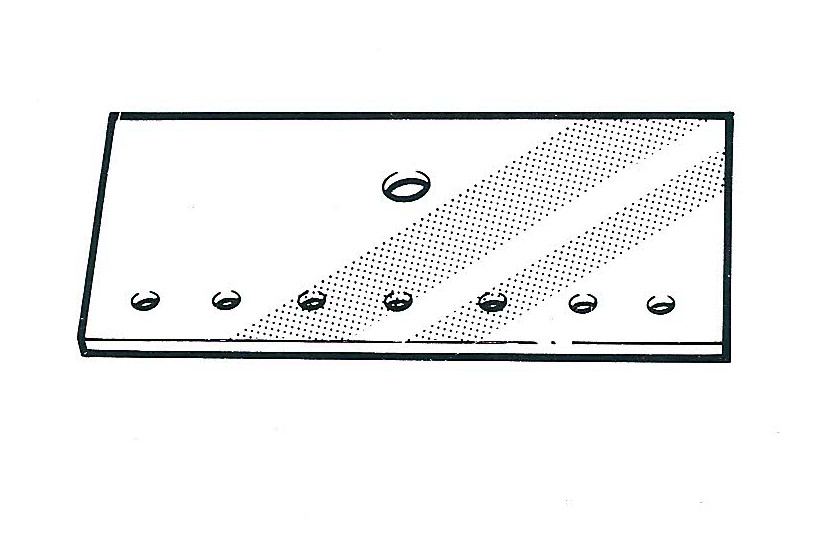

Stirrup Mounting Plate

Stirrup Mounting Plate

Part Number: MP/2495

  • Used for mounting floodlights to our design of brackets.
  • Manufactured from Mild Steel.
  • Galvanised to BS 729.

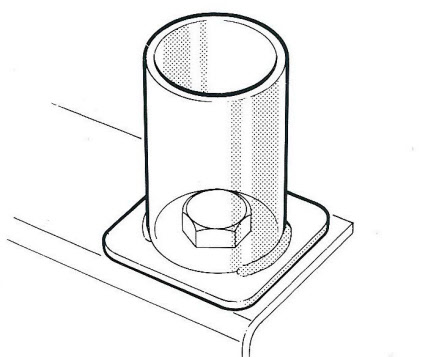

Spigot Adapter

  • Designed for mounting post top floodlights.
  • Spigot sizes 76mm dia and 60mm dia.
  • Manufactured from Mild steel.
  • Galvanised to BS 729.
Spigot Adapter
Part Number
Col Dia
SA/249760
SA/249976

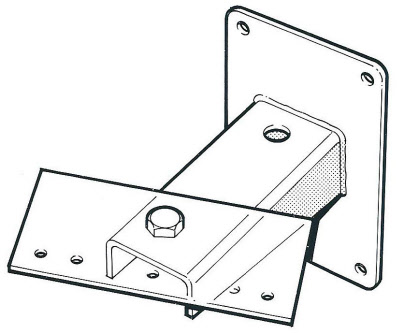

Flood Light Wall Bracket

Wall Bracket

Part Number: FL/2350

  • Flat Wall.
  • Projection 300mm (Standard).
  • Stirrup Fixing Plate.
  • Galvanised to BS 729.
Wall Bracket Flat

Wall Bracket Flat

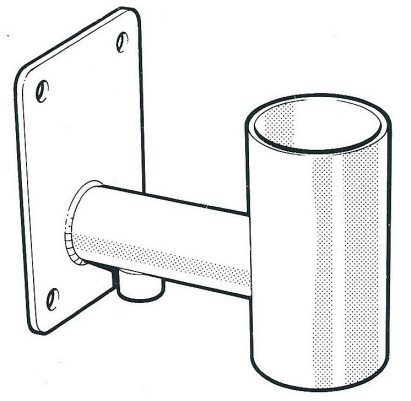

Flood Light Mounted Bracket

Part Number: FL/2355

  • Cable Entry 20mm.
  • Spigot Size 60 and 76mm.
  • Projection 150 to 300mm.
  • Will Mount to Walls, Buildings etc.
  • Corner Version also available.
Flood Light Mounted Bracket

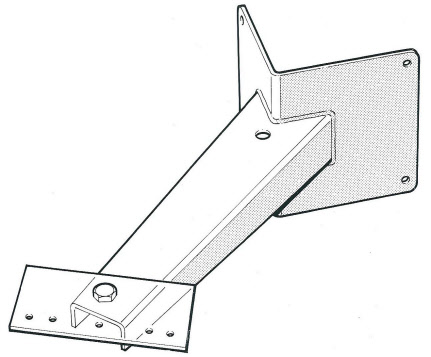

Corner Wall Bracket

Corner Wall Bracket

Part Number: FL/2360

  • Corner Wall.
  • Projection 400mm (Standard).
  • Stirrup Fixing Plate.
  • Galvanised to BS 729.
Corner Wall Bracket

Corner Wall Floodlight Bracket

!
